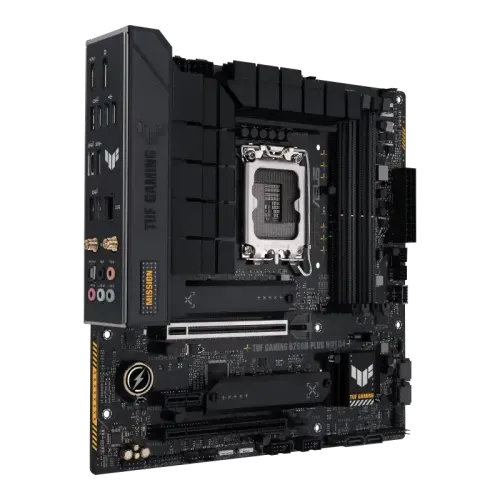

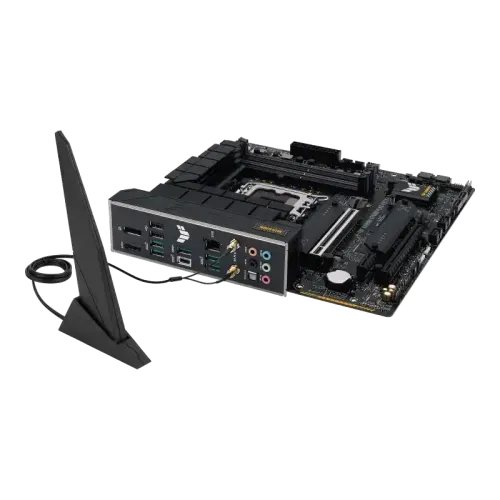

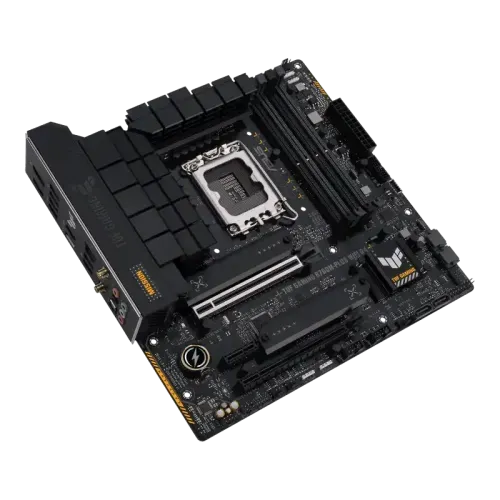

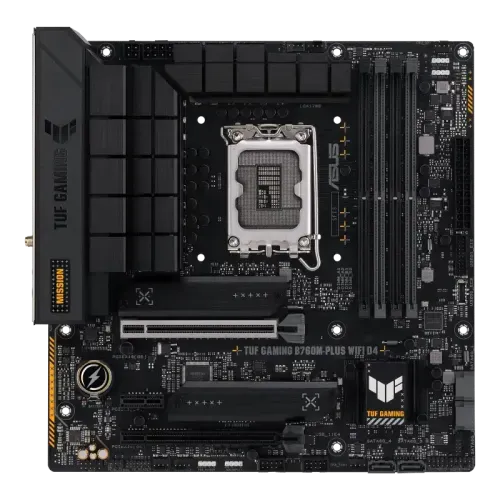

Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard
Key Features
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x DisplayPort, 1 x HDMI
- Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6
Specification
| General | |
| Brand | Asus |
| Model | TUF GAMING B760M-PLUS WIFI D4 |
| Memory | |
| Slots | 4 x DIMM |
| Maximum Memory | Max. 128GB |
| Supported Memory | 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Graphics | |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Key Features | |
| Form Factor | mATX 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | Intel B760 Chipset |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Connectivity | |
| HDMI | 1 x HDMI port |
| Expansion Slots | |
| M.2 Socket | Total supports 2 x M.2 |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Ports & Connector | |
| Display Port (s) | 1 x DisplayPort |

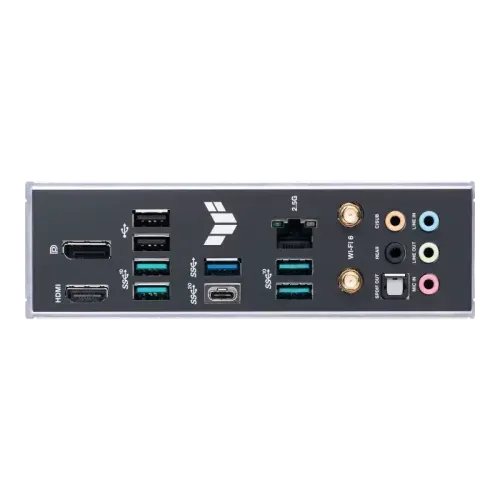

| Internal I/O Ports | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
| Power | |
| Type | DDR4 |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |
Description
The Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard combines all of the core characteristics of the newest Intel CPUs with game-ready features and proven durability. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. These Asus TUF GAMING B760M motherboards have versatile tools for tuning every area of your system, allowing expert performance modifications to match the way you play. The Power Saving feature has several options that allow you to simply control power use and maximize energy savings. You may enable a CPU power restriction, dim the Aura lighting, and change the fan profile to power-saving mode. You can also enable or disable Microsoft Windows' Power Saving strategy. The TUF GAMING B760M-PLUS WIFI D4 is the ideal foundation for your next Intel battle rig, with upgraded power delivery and comprehensive cooling options to power the latest Intel CPUs, as well as support for DDR4 memory and PCIe 4.0 storage. 12+1 power stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard
What is the price of Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard in Bangladesh? expand_more
The latest price of Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard in Bangladesh is 26,800৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard currently in stock at Skyland? expand_more
Yes, Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard? expand_more
Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard comes with 3 years warranty. Skyland Computer ensures 100% genuine products with official service and warranty support.
