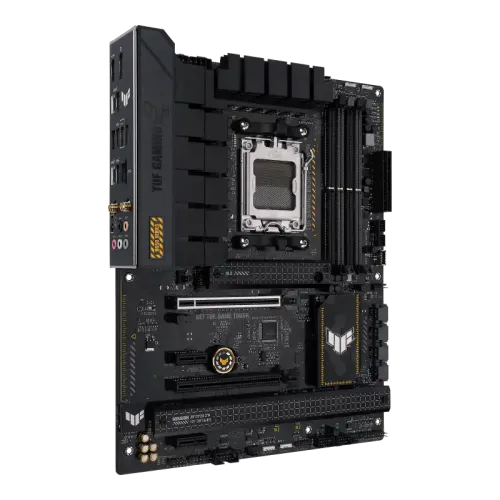

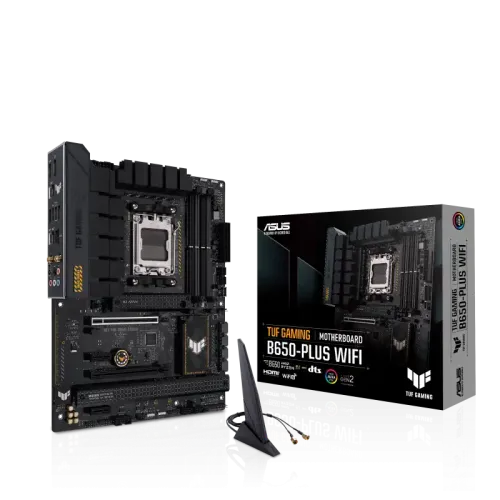

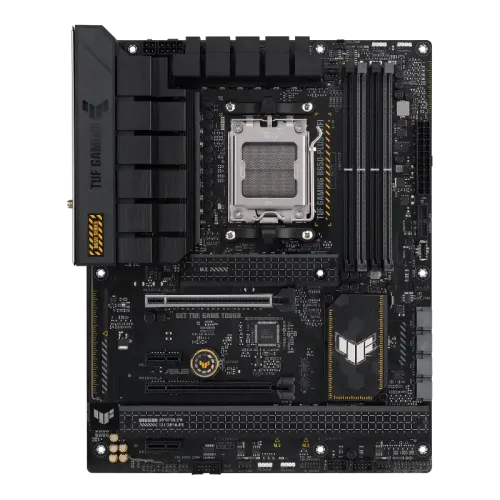

Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard
Key Features
- Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 128GB, 6400+(OC)
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
Specification
| General | |
| Brand | Asus |
| Model | TUF GAMING B650-PLUS WIFI |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Maximum Memory | 128GB |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
| Graphics | |
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Basic Information | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000/ 7000 Series Desktop Processors |
| Expansion Slots | |
| M.2 Socket | Total supports 3 x M.2 slots |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots |
| Ports & Connector | |
| Audio | 5 x Audio jacks |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
Reviews (0)
Get specific details about this product from customers who own it.
Frequently Asked Questions (FAQs)
Common questions and answers regarding Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard
What is the price of Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard in Bangladesh? expand_more
The latest price of Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard in Bangladesh is 36,500৳. You can purchase it at the best price from our website or visit any of our Skyland Computer outlets.
Is Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard currently in stock at Skyland? expand_more
Yes, Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard is currently In Stock at Skyland. You can order online for fast home delivery across Bangladesh or in-store pickup.
What warranty comes with Asus TUF GAMING B650-PLUS WIFI DDR5 AM5 ATX Motherboard? expand_more
This product comes with official brand warranty as detailed in the technical specifications. Skyland Computer ensures 100% genuine products with official service and warranty support.
