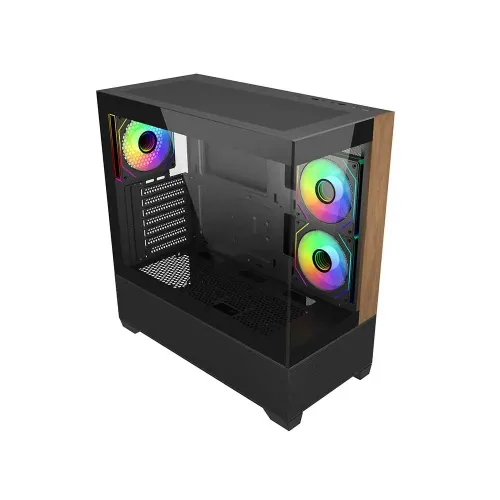

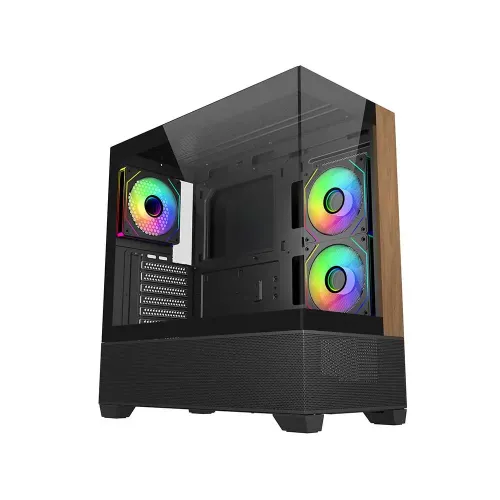

Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Case - Black
Key Features
- Mid-tower Micro ATX case with a stylish wood-accent front panel for a premium look.
- Supports multiple cooling options with space for fans and radiators to optimize airflow.
- Spacious interior for easy installation of graphics cards, storage, and other components.
- Durable steel construction ensures long-lasting performance and protection for internal hardware.
Specification
| General | |
| Brand | Cooler Master |
| Model | Elite 690 Wood |
| MPN | E690-KHNN-S00 |
| Case Type | |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Type | Mid Tower |
| Clearance Space | |
| Maximum CPU Cooler Height | 170mm |
| Maximum GPU Length | 425mm |
| Maximum PSU Length | 250mm |
| External Features | |
| Color(s) | Black |
| Dimensions | 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions) |
| Drive Bays | 5.25" Drive Bays: 0 3.5" Drive Bays: 1 (Max. 2) 2.5" Drive Bays: 1 (Max. 2) |
| Expansion Slots | 7 |
| Fan Support | Top: 2x 140mm / 3x 120mm Rear: 1x 120mm Side Mount: 2x 120mm Bottom: 3x 120mm |
| I/O Port | USB Ports 1 x USB Type C 20Gbps, 2 x USB 3.0, Audio In / Out 1x 3.5mm Combo |
| Material | Front Panel: Tempered Glass + Wood Side Panel (Left): Tempered Glass Side Panel (Right): Steel |
| Pre- Installed Fans | Rear: 1x 120mm ARGB PWM Side Mount: 2x 120mm ARGB PWM reverse fan |
| Radiator Support | Top: 120 / 240 / 360 (Max height 45mm) Bottom: 120 / 240 / 360mm Side Mount: 120 / 240mm |
| Performance | |
| Volume | 42.93 L (Liters Incl. Protrusions) |
| Power | |
| Power Supply Support | ATX |
| Warranty Information | |
| Warranty | 02 years |
Description
The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.
