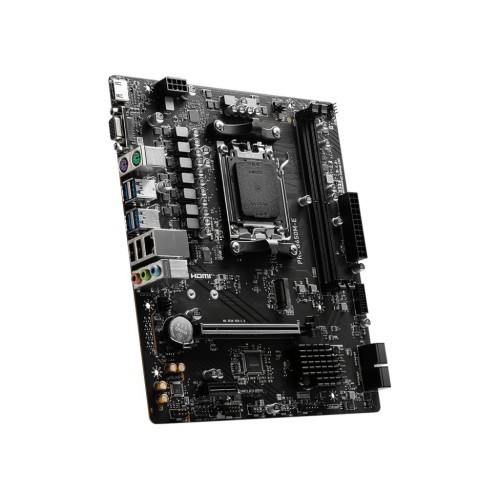

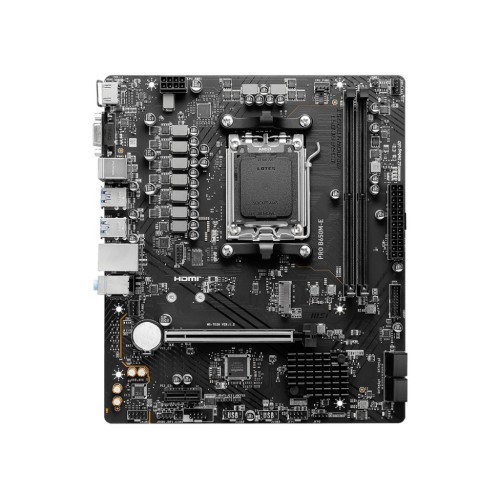

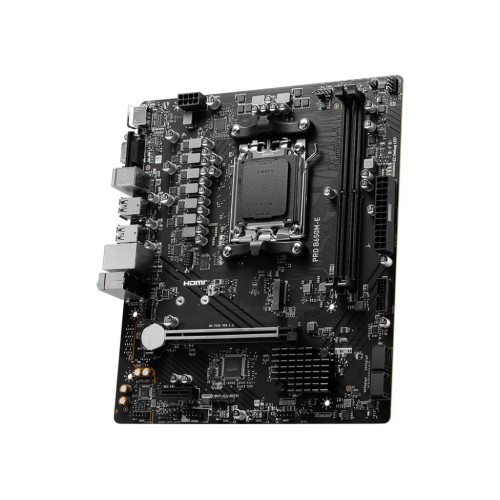

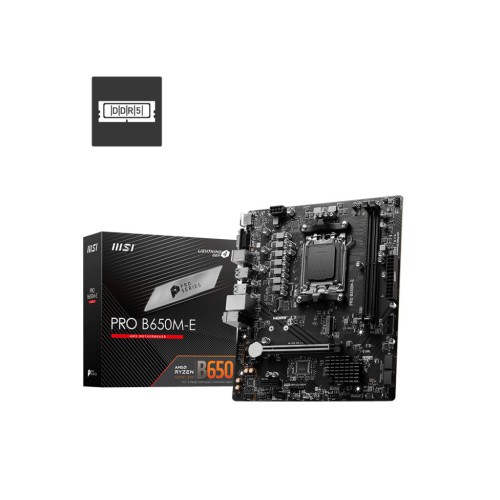

MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard

Main Features
Chipset	AMD B650
Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Generel information
Type	DDR5
AUDIO CODEC	Realtek® ALC897 Codec 7.1-Channel High Definition Audio

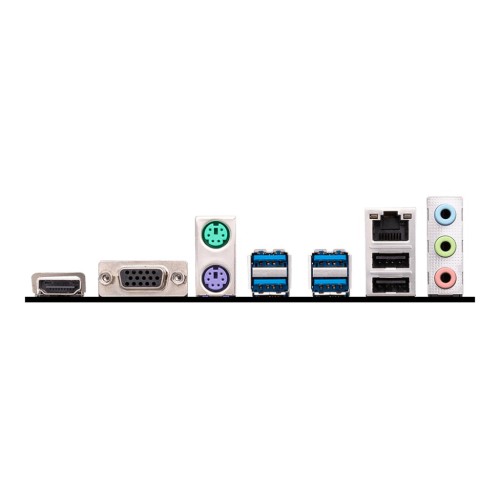

Back Panel Connectors	HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0
Form Factor	mATX 211mmx243.84mm
Graphic	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
LAN Port	Realtek® RTL8111H Gigabit LAN
LED	4x EZ Debug LED
Operating System Support	Support for Windows® 11 64-bit, Windows® 10 64-bit
Slot	1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
VGA (s)	1
Memory Specifications
Maximum Size	128GB
Supported Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Connector & ports
HDMI	1x HDMI
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
Supported Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Warranty Information
Warrantty	3 Years

MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard is a versatile and high-performance motherboard designed to support AMD Ryzen 8000/7000 Series Desktop Processors, providing users with exceptional computing power for a variety of tasks, from gaming to productivity. At the heart of this motherboard is the AMD B650 chipset, offering reliable and efficient performance. With support for DDR5 memory technology, users can experience enhanced speed and responsiveness for their system. The motherboard accommodates up to 128GB of DDR5 memory across two slots, ensuring ample capacity for multitasking and demanding applications. Graphics capabilities are robust, featuring HDMI 2.1 and VGA outputs for high-resolution display options. Whether you're gaming or watching multimedia content, you can enjoy sharp and vibrant visuals. Connectivity options abound with a range of ports available on the back panel, including HDMI, VGA, USB 3.2 Gen 1, USB 2.0, LAN, and audio connectors. Additionally, internal I/O ports cater to various expansion and customization needs, such as CPU and system fan headers, front panel connectors, and RGB LED support for aesthetic enhancements. Storage options are flexible, with support for M.2 and SATA storage devices, allowing for fast data transfer speeds and ample storage capacity. The motherboard also includes a Trusted Platform Module (TPM) header for enhanced security features. The MSI PRO B650M-E motherboard prioritizes user convenience and ease of use, evident in its EZ Debug LED indicators, which simplify troubleshooting. Additionally, the board boasts a solid build quality and is backed by a generous three-year warranty, providing users with peace of mind and assurance of reliability. Whether you're a casual user, content creator, or avid gamer, the MSI PRO B650M-E DDR5 AMD AM5 mATX Motherboard offers the performance, features, and reliability needed to meet your computing needs now and into the future.
