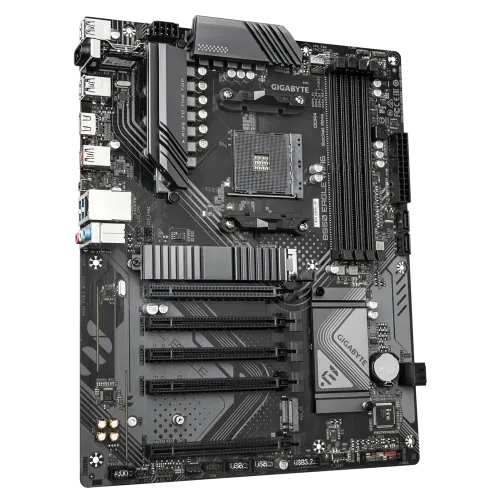

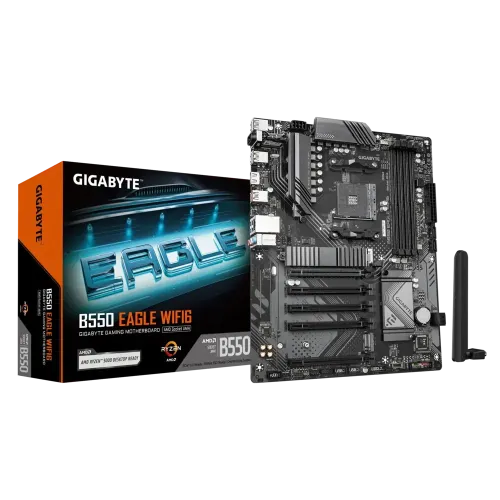

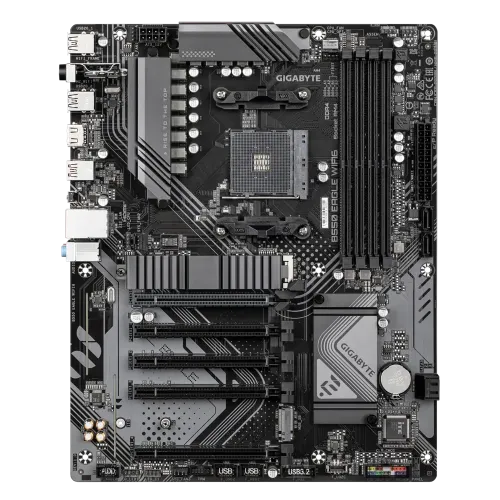

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

Name: Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard
Brand: Gigabyte
Price: 17500.00 BDT
Availability: InStock

New Save: 2,800৳

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

0 reviews - Write a review

Price: 17,500৳

Regular Price: 20,300৳

Stock : In Stock

Brand: Gigabyte

Model: B550 EAGLE WIFI6

Model: B550 EAGLE WIFI6
Supported CPU: Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors
Supported RAM: 4x DDR4, Max 128GB 3200 MT/s
Graphics Output: 1x HDMI
Features: Realtek GbE LAN, Wi-Fi 6, Bluetooth 5.3

17,500৳

Cash Discount Price

Online / Cash Payment

3,904৳/month

Regular Price: 20,300৳

EMI Starting from 3,904৳/month.
Click here to check EMI Policy

Qty

Add to Cart

Buy Now

Add to Wish List Add to Compare

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। হটলাইনঃ 09644-217088

Custom Tabs

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc.

You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Description

Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

Specification

Supported CPU	AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Chipset	AMD B550
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
M.2 Socket	1 x M.2 connector (M2A_CPU) 1 x M.2 connector (M2B_SB)
Type	DDR4
Slots	4 x DIMM
Supported Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB
Graphics	ntegrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports.
Max Shared Memory	16 GB
HDMI	1 x HDMI
USB (s)	CPU: - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless Communication module	Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID	Support for RAID 0, RAID 1, and RAID 10
Audio	3 x audio jacks

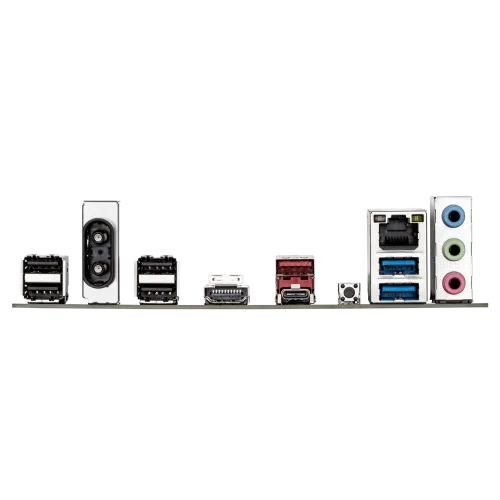

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Special Features	Support for APP Center @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty	03 years

Description
Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard
The Gigabyte B550 EAGLE WIFI6 Motherboard is a high-performance motherboard designed for AMD Ryzen CPUs that provides a powerful combination of speed, reliability, and modern connectivity. This Gigabyte AMD Motherboard features a 10+3 Digital VRM design, ensuring a consistent and efficient power supply, making it an excellent choice for gaming, content creation, and productivity applications. This Gigabyte 550 motherboard supports PCIe 4.0, which allows for ultra-fast data transfer for high-end graphics cards and NVMe SSDs, resulting in greater system responsiveness. Users can experience lightning-fast storage speeds with twin M.2 slots, one of which is a PCIe 4.0 M.2 slot, lowering load times and increasing workflow efficiency. This Gigabyte ATX Motherboard features Wi-Fi 6 and GbE LAN, enabling uninterrupted online gaming and flawless streaming capabilities, making it an ideal Gigabyte wifi motherboard for those who want fast internet connectivity. The motherboard also features a superior thermal design, including full-metal heatsinks and Smart Fan 6 technology, which keeps the system cool under intense workloads while minimizing noise for an optimal experience. Also, the Ultra Durable components, such as strengthened PCIe slots and strong power connectors, contribute to its lifespan, making it one of the most dependable Gigabyte ATX Motherboard alternatives available. Whether you are a gamer, a professional user, or a PC builder searching for a reliable motherboard with high-end capabilities, the Gigabyte B550 EAGLE WIFI6 Motherboard is a superb choice, providing cutting-edge technology, high-speed networking, and durability for demanding tasks. With its high-end features and Gigabyte wifi motherboard capabilities, the Gigabyte 550 motherboard provides a solid foundation for any modern computing setup, providing top-tier performance and dependability.

Reviews

Tags: Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard

What is the price of Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard in Bangladesh?

The latest price of Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard in Bangladesh is 17,500৳ You can buy the Gigabyte B550 EAGLE WIFI6 AM4 ATX Motherboard at best price from our website or visit any of our showrooms.
